Exoplanet Atmosphere Report · JWST MIRI LRS

HD 209458 b

Nicknamed "Osiris" — the first known exoplanet observed to transit its star, and the first exoplanet whose atmosphere was directly detected. More than two decades later, JWST is still finding new structure in its atmosphere: a 2026 MIRI spectrum testing for magnesium silicate clouds.

Discovered 1999, RV + transit NASA Exoplanet Archive parameters 2026 JWST MIRI LRS spectrum
Artist's concept of HD 209458 b, the first exoplanet with a directly detected atmosphere

AI-generated artist's concept of HD 209458 b — not a real photograph. All data and figures in this report come from actual JWST MIRI observations (see below).

The planet, in numbers

Queried live from the NASA Exoplanet Archive TAP service (pscomppars).

Radius15.58 Earth radii (~1.39 Jupiter radii)
Mass232.0 Earth masses (~0.73 Jupiter masses)
Orbital period3.52 days
Semi-major axis0.047 AU
Equilibrium temperature1459 K
Host starHD 209458, G-type dwarf, Teff = 6091 K, 1.19 Rsun, 1.23 Msun
Distance48.3 parsecs (~157 light-years)
Discovery1999, radial velocity, transit confirmed the same year

A quarter-century of firsts

1999 — Discovered by radial velocity (Mazeh et al., Latham et al.); its transit was detected within months, making it the first exoplanet confirmed by both methods.
2000 — Henry et al. and Charbonneau et al. independently report the transit photometry, giving the first directly measured exoplanet radius.
2002 — Charbonneau et al. detect sodium absorption in transit with HST STIS: the first exoplanet atmosphere ever directly measured.
2007-2010s — Extensive HST and Spitzer follow-up establishes escaping hydrogen, water vapor, and haze/scattering in its atmosphere.
2026 — Chubb, Grant, and collaborators publish a JWST MIRI LRS transmission spectrum testing for magnesium silicate cloud absorption, using a rule-based tree-structured data reduction to quantify how much pipeline choices affect the result (the data behind this report).
Close-up 3D-rendered concept of HD 209458 b's cloudy atmosphere

AI-generated 3D-render-style concept of the magnesium silicate cloud layer this report's data tests for — not an actual image of the planet.

JWST MIRI spectrum, and how much the reduction pipeline matters

The figure uses the reduced data behind Figure 4 of the 2026 paper: four "leaves" of one tree-structured reduction pipeline for the same underlying MIRI LRS observation. The leaves share the same exposures and most of the same processing, differing only in specific reduction-tree decisions — they are not four separate, independent pipelines. "Leaf 3" is the version the authors used in most of their retrievals.

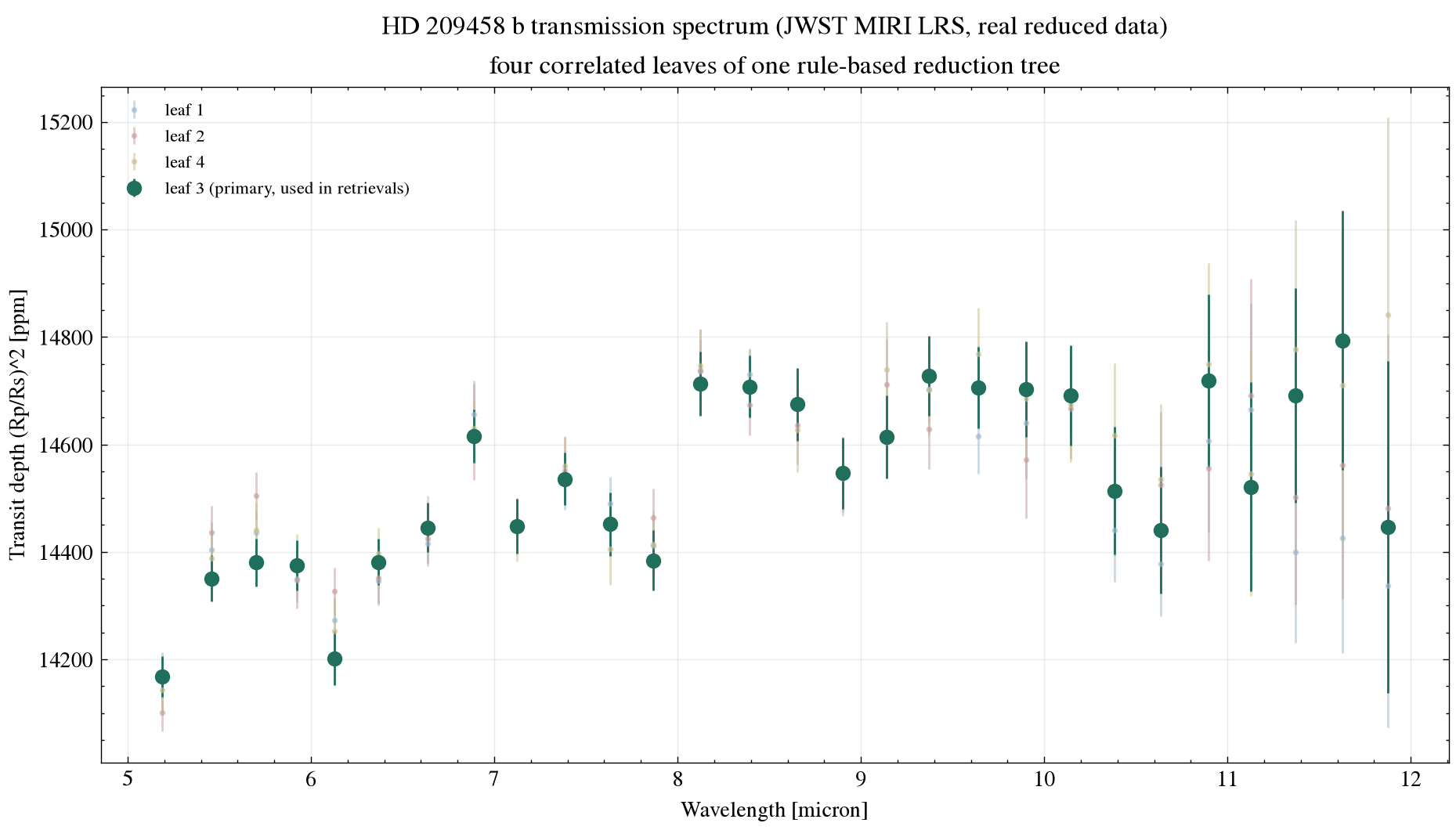

HD 209458 b JWST MIRI LRS transmission spectrum from four correlated reduction-tree leaves
28 wavelength bins, 5.2-11.9 microns. All four reduction-tree leaves are shown; the primary one (leaf 3) is highlighted. Generated by scripts/analyze_spectrum.py.
Wavelength bins28
Mean transit depth14458 ppm
Mean photon-noise error92 ppm
Mean reduction spread122 ppm

The spread between the four reduction-tree leaves (122 ppm, averaged across wavelength) is larger than the average photon-noise uncertainty (92 ppm) quoted on any single leaf's spectrum — for this dataset, which reduction choices you make can matter as much as the data's own statistical noise, echoing the source paper's point. This max-min spread is a sensitivity metric, not a statistically calibrated systematic uncertainty: the four leaves share the same underlying photons and much of the same processing, so the comparison isn't a clean variance decomposition, and the source paper's own tree-structured framework treats this question more rigorously than the simple comparison here.

Data and method notes

System parameters come from the NASA Exoplanet Archive TAP service. The spectrum is reduced JWST MIRI LRS data released publicly on Zenodo (record 10.5281/zenodo.20089901) alongside its original README. See data/ for both files exactly as downloaded, and scripts/analyze_spectrum.py for the analysis (python scripts/analyze_spectrum.py to rerun it).

AI-generated illustration of the James Webb Space Telescope

AI-generated illustration of the James Webb Space Telescope, whose MIRI instrument took the real spectrum used in this report. Not an official mission photograph — see NASA/JWST for real imagery.

References

  1. Charbonneau, D. et al., 2002. Detection of an Extrasolar Planet Atmosphere. The Astrophysical Journal, 568(1), pp.377-384.
  2. Chubb, K.L., Grant, D. et al., 2026. Magnesium Silicate Clouds in the Atmosphere of HD 209458b from a Rule-Based Tree-Structured Data Reduction. Zenodo record 10.5281/zenodo.20089901.
  3. Henry, G.W. et al., 2000. A Transiting "51 Peg-like" Planet. The Astrophysical Journal Letters, 529(1), pp.L41-L44.
  4. Vidal-Madjar, A. et al., 2003. An extended upper atmosphere around the extrasolar planet HD209458b. Nature, 422, pp.143-146 (escaping hydrogen).
  5. NASA Exoplanet Archive, exoplanetarchive.ipac.caltech.edu — system parameters, queried live via TAP.
